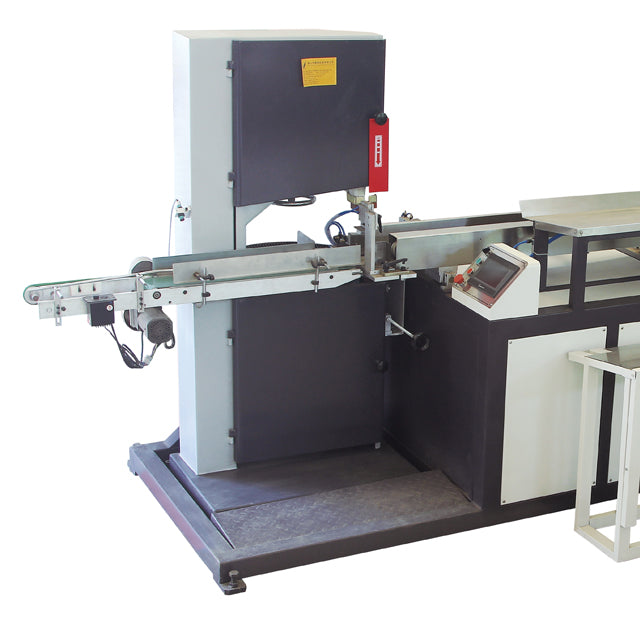

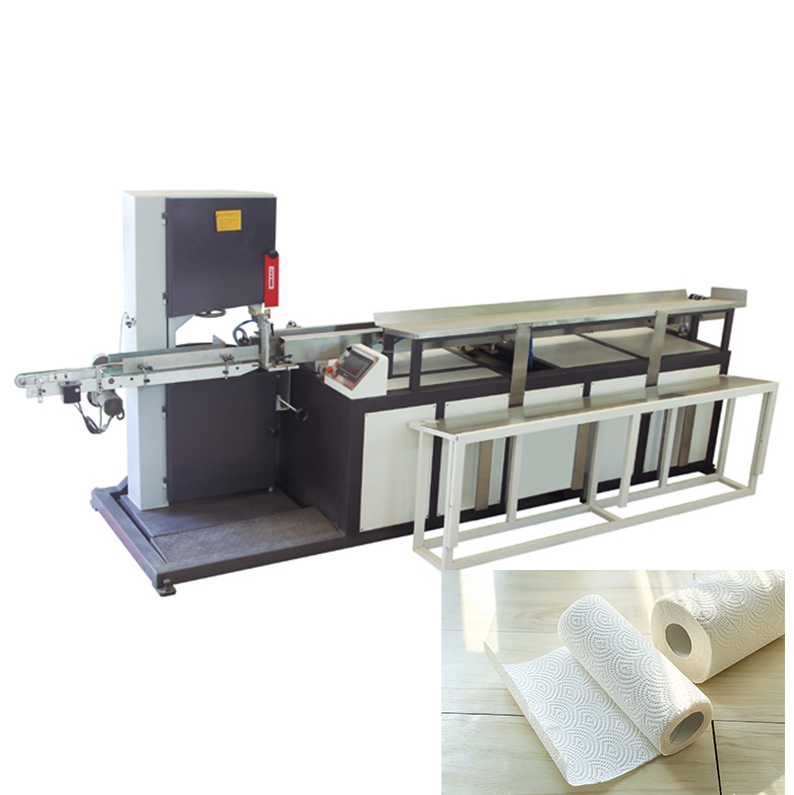

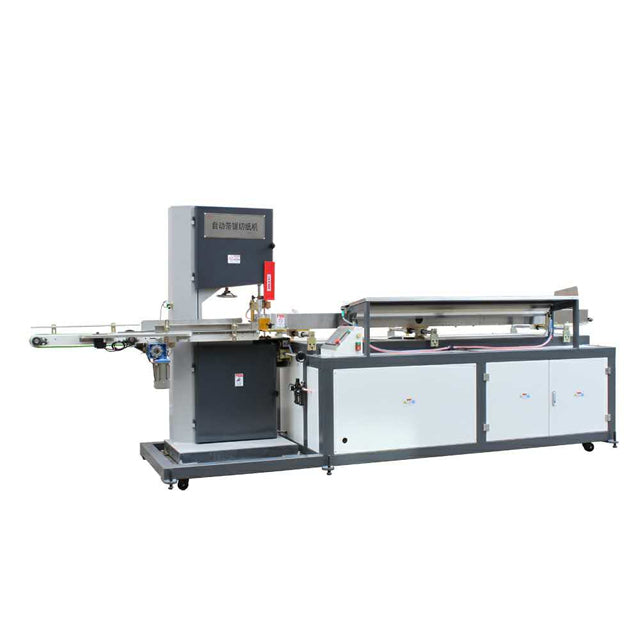

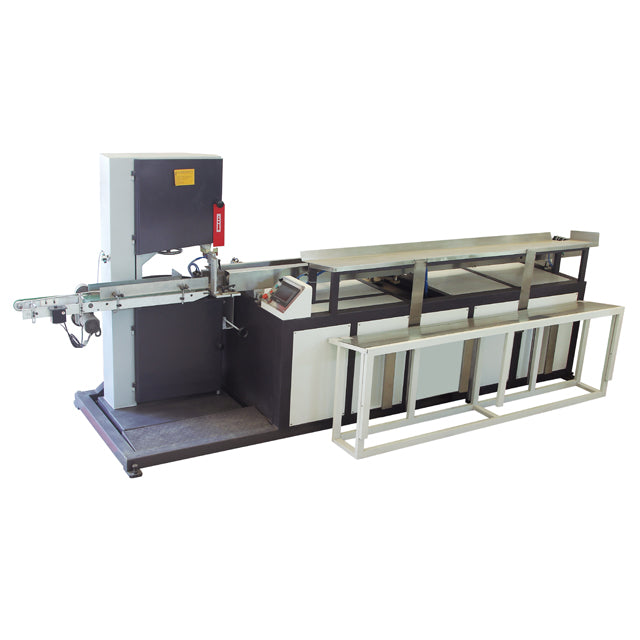

Full Automatic Paper Roll Cutting Machine Toilet Tissue Kitchen Towel Band Saw Cutter High Precision Roll Slitting Equipment

1. Product Overview

This Roll Cutting Machine, also known as Band Saw Cutter / Roll Slitting Equipment, is high precision cutting machinery for household paper industry. It is developed to cut large paper logs into finished toilet tissue and kitchen towel rolls. With band saw cutting structure, it delivers clean cut and stable running. Suitable for converting semi-finished jumbo paper logs into small finished rolls with customizable length. It can work independently or connect with tissue rewinding lines, ideal for tissue factories producing toilet rolls and kitchen towels.

2. Core Features

• Band saw cutting structure: stable cutting force, less paper dust compared with circular saw, clean cut edge without loose paper.
• High precision slitting & sizing: fitted with encoder and PLC positioning, cutting tolerance within ±1mm, consistent roll size.
• Strong heavy-duty frame: thick welded steel body, anti-vibration for continuous long-hour production, low breakdown rate.
• Touch screen & PLC control: easy to set cutting length, cutting speed and feeding parameters. Operators can change specifications quickly.
• Automatic feeding and counting: auto feed paper logs, fixed length cutting and finished roll counting, reduce labor input.
• Full safety protection: emergency stop button, overload protection and safety guard cover to protect operators.
• Wide application: compatible with toilet tissue, kitchen towel, semi-finished paper logs of different diameters.

3. Technical Specifications

Cutting Type: Band Saw Cutting Applicable Paper Log Diameter: Φ80–Φ150mm Cutting Length Range: 80–300mm (customizable) Cutting Precision: ±1mm Cutting Speed: 70–110 cuts/min (adjustable) Control System: PLC + Touch Screen Saw Blade: High quality band saw blade Power Supply: 380V, 3 Phase, 50Hz Total Power: 7.5KW Machine Weight: 820KG Overall Dimension: 175011501480mm

4. Machine Structure & Composition

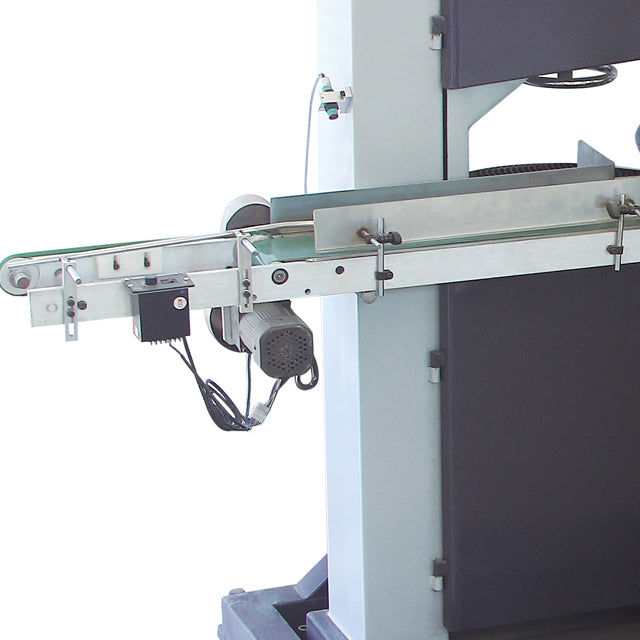

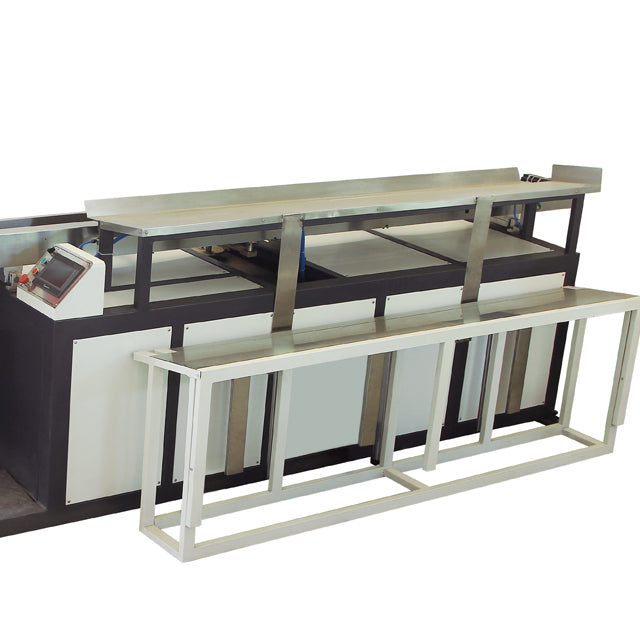

This machine consists of automatic feeding unit, positioning sensor, band saw cutting assembly, scrap collecting system, electric cabinet and finished roll discharge table. The feeding conveyor adopts anti-slip design to keep paper logs running straight without offset. The dust collection system collects paper scraps generated during cutting to maintain a tidy workshop. Key electric and pneumatic parts adopt reputable brands, ensuring stable performance and simple maintenance.
