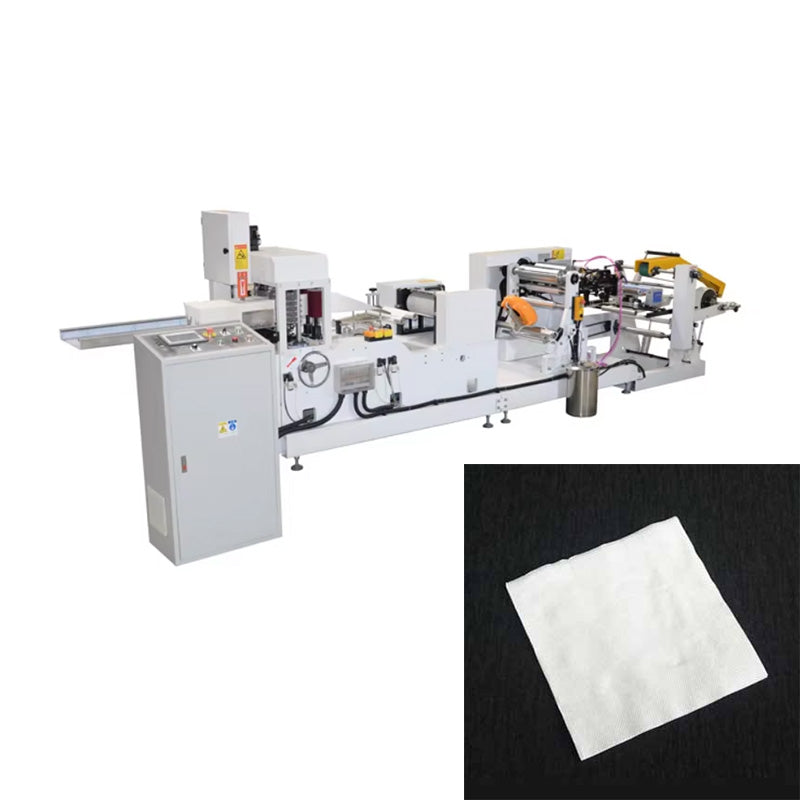

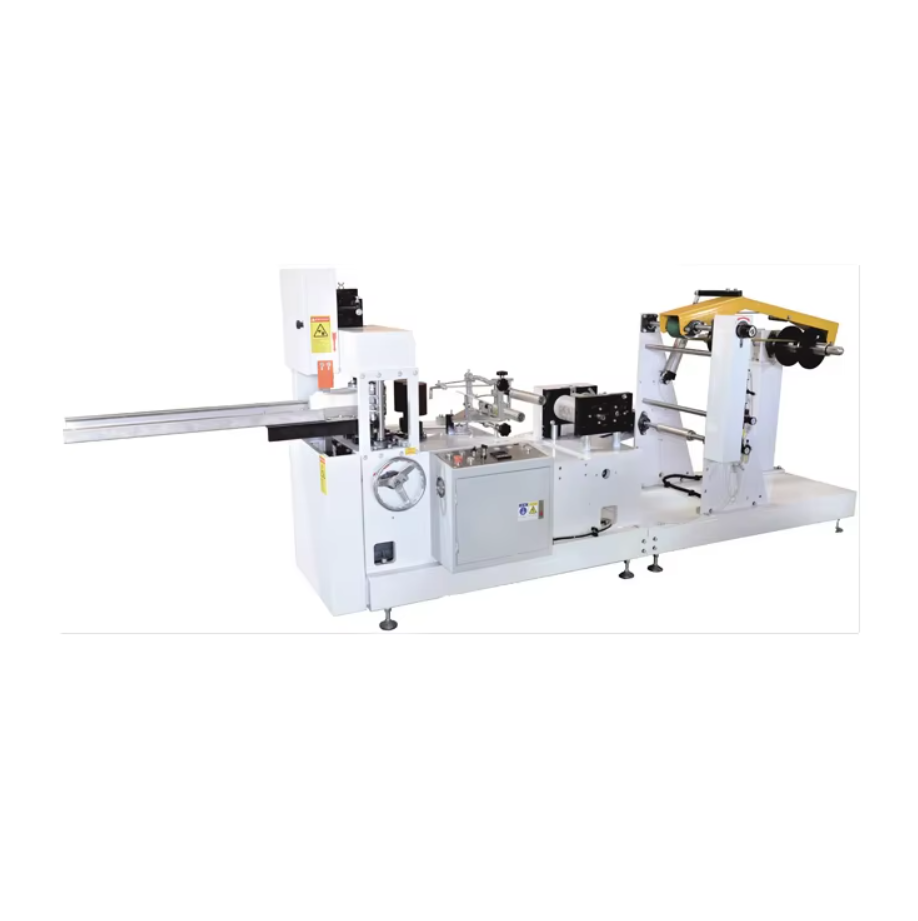

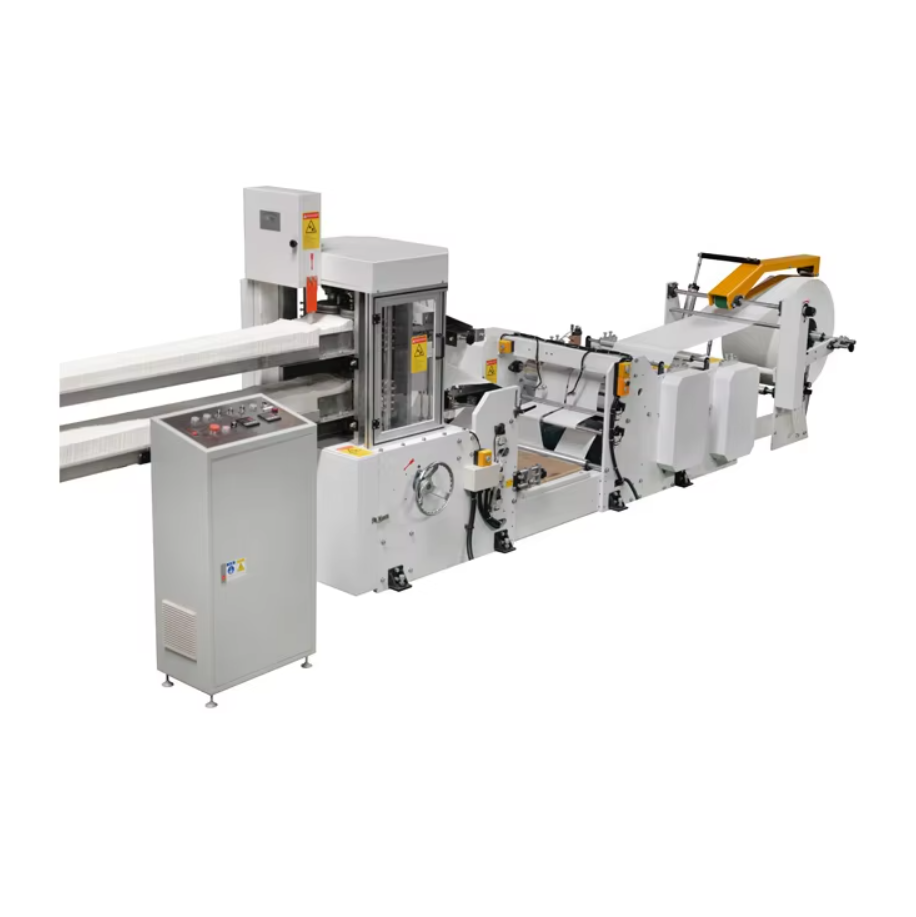

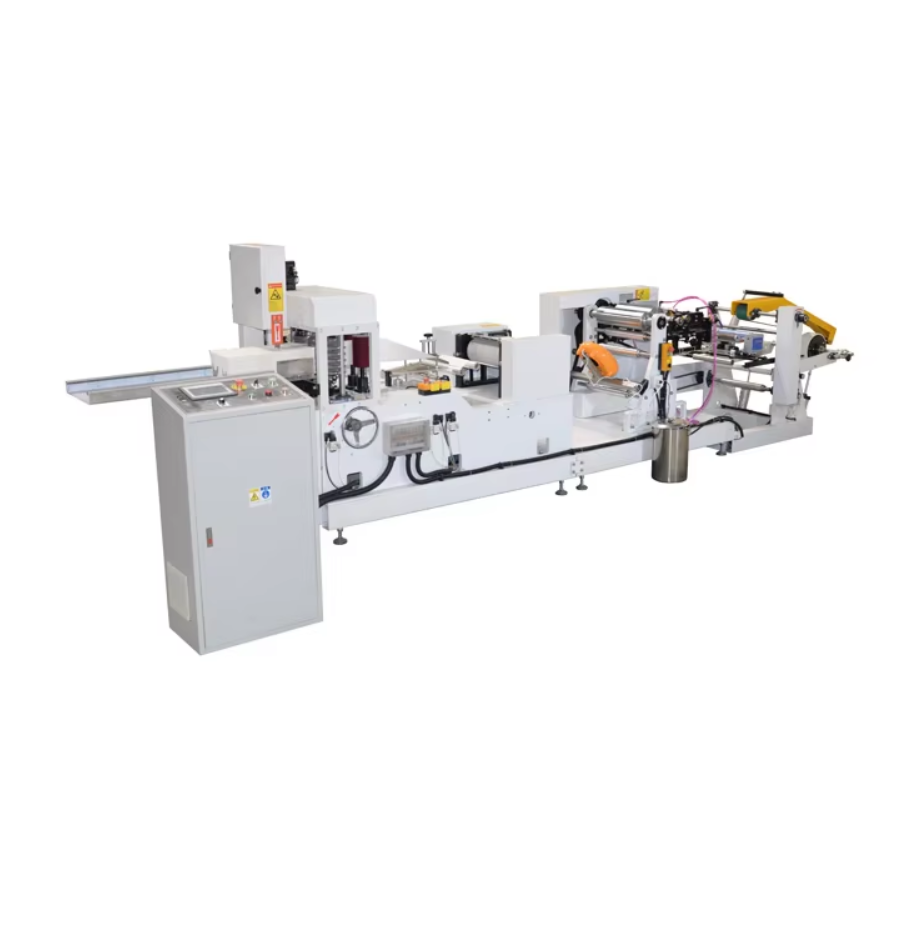

Fully Automatic Economic Dinner Napkin Paper Folding Machine Embossing Printing Serviette Tissue Making Machine With Good Price

1. Product Overview

This dinner napkin paper folding machine is specialized tissue converting equipment for producing folded dinner napkins. It processes jumbo tissue roll raw material to finish embossing, printing, slitting and multi-layer folding in one pass. It can make different fold styles of paper napkins for restaurants, hotels, catering and daily household use. Suitable for medium and small tissue factories.

2. Main Application

• End products: Dinner napkins, cocktail napkins, restaurant paper napkins
• Raw material: Jumbo tissue parent roll (virgin pulp or recycled pulp)
• Application: Tissue converting plant, paper product factory, catering supply manufacturer
• Fold types: 1/4 fold, 1/8 fold, multi-fold napkin, customized folding pattern

3. Core Features

1. Multi-functional integration: Embossing, color printing, slitting and folding can be combined on one machine.
2. PLC + touch screen control: Easy to set napkin size, folding layers and production speed.
3. Precise folding system: Neat folding shape, uniform size, no offset.
4. Optional embossing unit: Adds beautiful patterns, improves paper softness and texture.
5. Optional printing unit: Print brand logo, patterns on napkin surface.
6. Stable running, low noise and easy maintenance.
7. Safety guards and emergency stop button for operator protection.

4. Technical Parameters (Standard Model)

• Jumbo roll width: 1200mm / 1400mm / 1600mm (optional)
• Max jumbo roll diameter: 1000–1200 mm
• Finished napkin size: Customizable according to customer demand
• Production speed: 80–180 m/min
• Power supply: 380V, 50Hz
• Total power: ~7–15 kW
• Air pressure requirement: 0.5–0.7 MPa
• Machine weight: 2200–4500 kg
• Machine dimension: Depends on working width and configurations

5. Working Principle

The jumbo tissue roll is mounted on the unwinding frame. The paper web goes through embossing roller and printing roller (if equipped). Then the paper is slit into required width, and enters the folding mechanism for multi-layer folding. Finally, the folded napkins are stacked and discharged continuously, ready for subsequent packaging.
